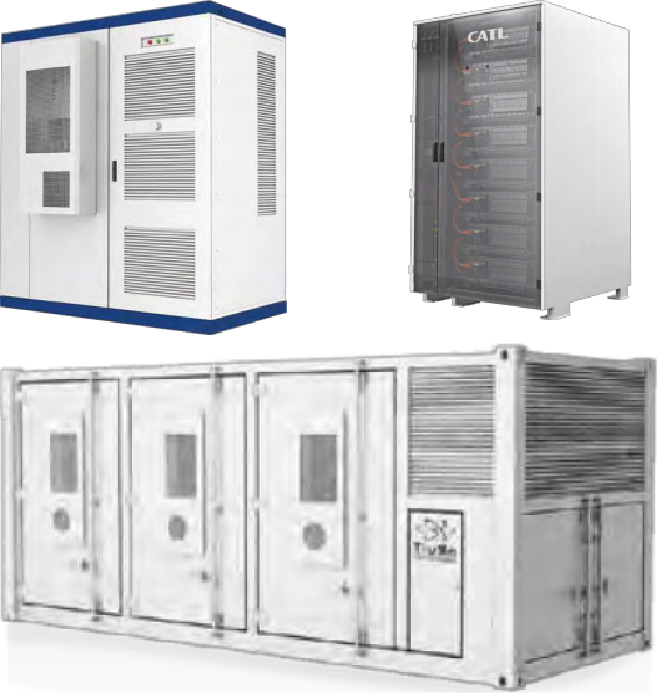

Commercial and Industrial Energy Storage
We can customize a range of commercial ESS from 50kWh to 4750kWh

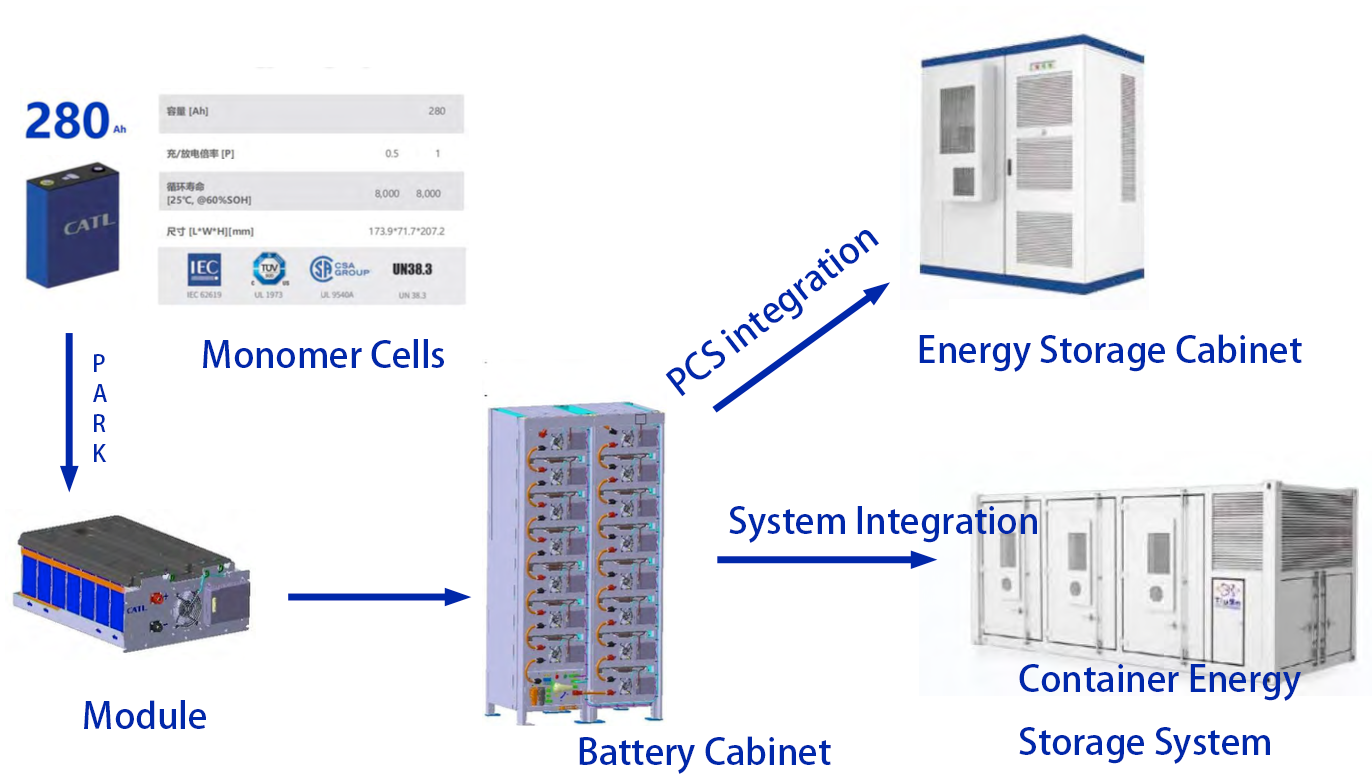

The energy storage container system is an integrated storage system developed to meet the needs of the large-scale energy storage market. It integrates battery cabinets, BMS, monitoring systems, dedicated fire-fighting systems, HVAC, PCS, and EMS. Suitable for thermal power plants, wind farms, solar power plants, or islands, schools, research institutes, factory load centers, and more.
Providing Solutions and Services for Clean Energy Storage

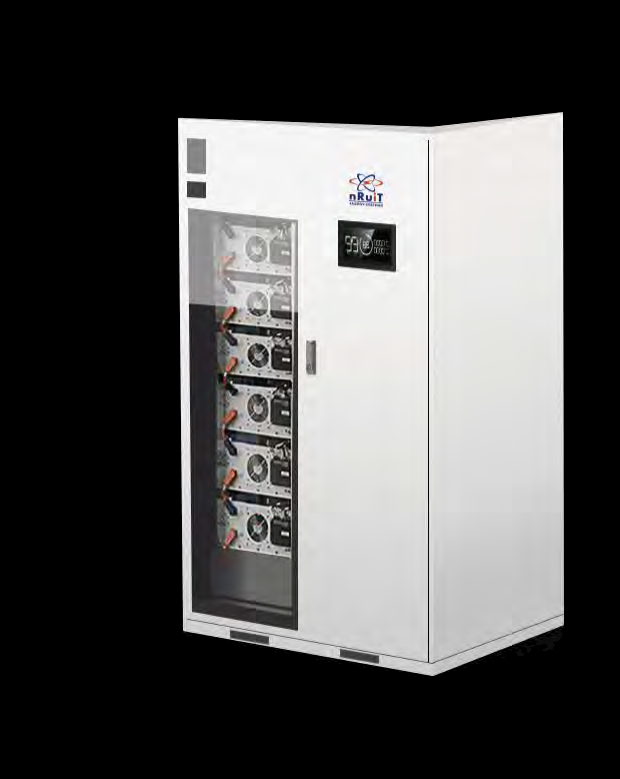

Indoor Energy Storage Cabinet
High Safety
Comprehensive and multi-level battery protection strategies and troubleshooting measures are in place.
Modular Design
Multiple units can be easily combined to provide the power your business needs.
Quick Deployment
Containers can be quickly deployed, making transportation and installation convenient, reducing infrastructure construction costs, and shortening construction time.
Flexible Configuration
The container can be paired with solar, wind, grid, and more, making it a large, multipurpose smart battery storage station.
| Model | 100kWh | 200kWh |
|---|---|---|
| Battery Cabinet Technical Parameters | ||
| Rated Capacity | 280Ah | 280Ah |
| Rated Voltage | 358.4V | 716.8V |
| Battery Module Series-Parallel Count | 1P16S*7 | 1P16S*14 |
| Voltage Range | 308V~408.8V | 616V~817.6V |
| Rated Energy | 100.352kWh | 200.704kWh |
| Max Charge/Discharge Capability | 0.5C | 0.5C |
| Cabinet Dimensions (W*D*H) | 650*980*2200mm | 1200*980*2200mm |
| Cycle Life | >=6000次 | >=6000次 |
| Cooling Method | 風冷 | 風冷 |
| Cabinet Weight | <=1.5T | <=26T |
| Battery Module Technical Parameters | ||
| Battery Cell Type | Lithium Iron Phosphate(LFP) | |
| Rated Voltage | 51.2V | |
| Battery Cell Capacity | 280Ah | |
| Battery Module Series-Parallel Count | 1P16S | |
| Battery Module Energy | 44V~58.4V | |
| Dimensions (W*D*H) | 480*700*230mm | |
| Cycle Life | >=6000 times | |
| Weight | 120kg | |

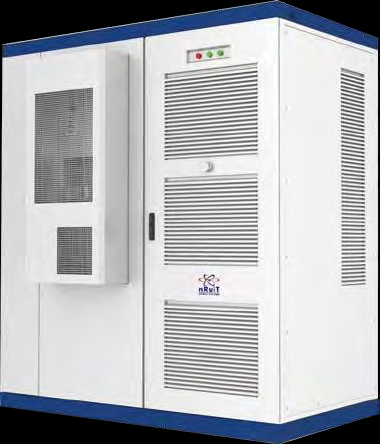

Outdoor Water-Cooled Cabinet
Flexibility
Integrated design and highly modular design with different optional components.
Compatibility
Compatible with various battery brands, 150~750Vdc grid-connected and off-grid. 480Vac 3P 4W & 240Vac 2P. Optional photovoltaic input and backup modules.
Easy Installation
NEMA 3R / IP54 protection level allows side-by-side or back-to-back parallel installation.
Certified Safety
Global grid certification and mainstream PCS meeting global safety standards.
| Battery Capacity | 100-186kWh |
| PCS Compatibility | |
| Max PCS Units | 3 |
| AC Power Range | 30kW(4000r480Vac & 350-750Vdc)*n unit(n=1,2,3) 15kW(4000r480Vac & 150-350Vdc)*n unit(n=1,2,3) |
| DCDC Compatibility | |
| Max DCDC Units | 3 |
| Photovoltaic Input Power | 45kW*n unit(n=1,2,3) |
| Photovoltaic Input Voltage Range | 200V-810V |
| Battery Voltage Range | 150-750Vdc |
Outdoor Water-Cooled Cabinet
The battery rack consists of 8 battery modules and a control box, chiller, fire protection, etc. The battery cell is the most basic battery unit. The BMS is composed of CSC and SBMU. The BMS collects status data from the battery, modules, and rack, and exchanges information with other components.
| Component | Quantity | Remarks |
|---|---|---|
| Rack | 1 | 2280mm(H)*1300mm(W)*1300mm(D) |
| Battery Module | 8 | With CSC |
| Control Box | 1 | |
| Chiller | 1 | |
| Fire Protection System | 1 | Includes smoke detectors, temperature detectors, and aerosols |
| Product Type | Product Type | ||
|---|---|---|---|
| Serial Number | Item | Specification | Remarks |
| 1 | Configuration | 1P416S | |
| 2 | Rated Energy | 372.7kWh | |
| 3 | Rated Voltage | 1331.2VDC | |
| 4 | Voltage Range | 1164.8~1497.6VDC | |
| 5 | Charging Current | Rated 280A | |
| Maximum 320A | Sustained for One Minute | ||
| 7 | Discharging Current | Rated 320A | |
| Maximum 320A | Sustained for One Minute | ||
| 9 | Operating Temperature | Charging -30~55°C | |
| Discharging -30~55°C | |||
| 6 | Auxiliary Power | Voltage Range 176-264VAC | 50/60Hz |
| Power:Heating-2800W,Cooling-3200W | 25°C | ||

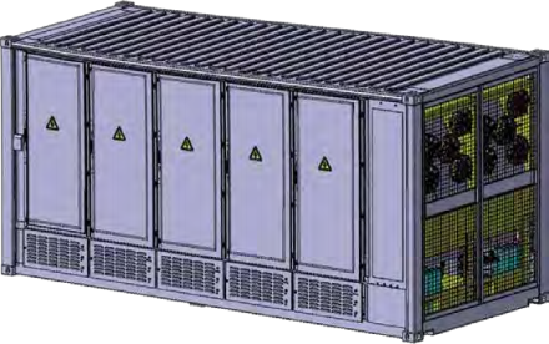

Containerized Energy Storage System
Quick Deployment
Containers can be quickly deployed, making transportation and installation convenient, reducing infrastructure construction costs, and shortening construction time.
Flexible Configuration
The container can be paired with solar, wind, grid, and more, making it a large, multipurpose smart battery storage station.
High Safety
Comprehensive and multi-level battery protection strategies and troubleshooting measures are in place.
Modular Design
Multiple units can be easily combined to provide the power your business needs.
| Containerized Energy Storage System | 500kW/1053kWh |
|---|---|
| Battery Type | Lithium Iron Phosphate (LEP) |
| Battery Cycle Life | 80%Retention with 6,000 Cycles@0.5C 25°C |
| Battery Specification | 3.2V/280Ah |
| Battery Series-Parallel Count | 1P196S |
| Battery Cluster Quantity | 6 |
| Rated Capacity | 1053.696kWh |
| Rated Voltage | 627.2V |
| Voltage Range | 548.8V~695.8V |
| BMS Communication Interface | RS485,Ethernet |
| 500kW | |
| Rated Voltage | 400V |
| Grid Voltage Range | 320~460V (configurable) |
| Rated AC Current | 722A |
| Output THDi | <3% |
| AC PF | 0.1~1 leading or lagging (configurable) |
| AC Output | Three-phase four-wire + PE |

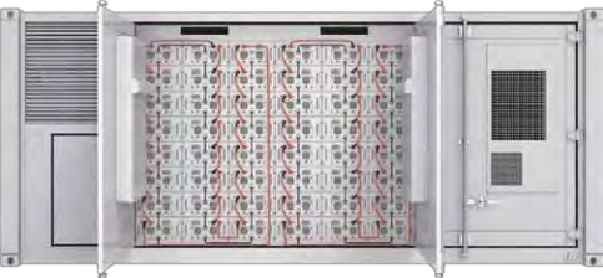

Containerized Energy Storage System
Quick Deployment
Containers can be quickly deployed, making transportation and installation convenient, reducing infrastructure construction costs, and shortening construction time.
Flexible Configuration
The container can be paired with solar, wind, grid, and more, making it a large, multipurpose smart battery storage station.
High Safety
Comprehensive and multi-level battery protection strategies and troubleshooting measures are in place.
Modular Design
Multiple units can be easily combined to provide the power your business needs.
Main Components
Battery Pack
Grid Connection Controller (GPC)
PCS Power Conversion System
| Product Model | Battery String Type | Rated Capacity | DC Voltage | Battery Cluster Capacity | Grid Connection Voltage |
|---|---|---|---|---|---|
| 20C2H600K | S373-24P14 | 1376kWh | 4 | 690V | 6058*2438*2591mm |
| 20C2H800K | S373-24P14 | 1720kWh | 5 | 690V | 6058*2438*2591mm |
| 20C2H1000K | S373-24P14 | 2064kWh | 6 | 690V | 6058*2438*2591mm |

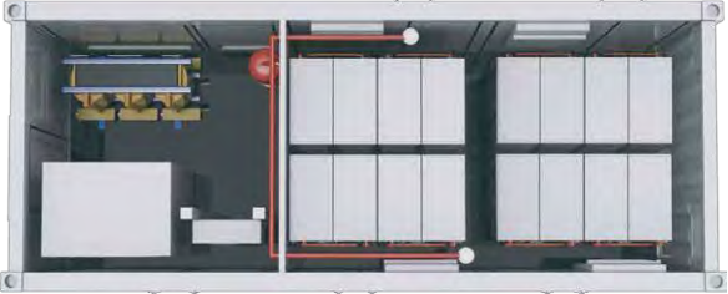

Liquid-Cooled Energy Storage Cabinet
Liquid-cooled energy storage battery is an integrated high-energy storage system, consisting of a battery rack system, battery management system (BMS), fire suppression system (FSS), HVAC thermal management system, and auxiliary power distribution system.
| System | Subcomponent | Quantity | Remarks |
|---|---|---|---|
| Battery Rack | 20ft Container | 1 | 2896mm(H)*2462mm(W)*6058mm(D) |
| Battery Rack | Battery Module | 80 | With CSC |
| Battery Rack | Main Control Box | 1 | Including IMM, MBMU, ETH, Fiber Converter Module |
| BMS | Control Box | 1 | Including SBMU, Fuse, Isolation Switch |
| HVAC | Cooling Unit | 2 | Including Compressor, Pump, Fan, Heater, etc. |
| HVAC | Fire Control Unit | 1 | |
| HVAC | Smoke Detector | 10 | |
| Fire Suppression System | Gas Detector | 10 | |
| Fire Suppression System | Aerosol | 10 | |
| Power Supply | Power Distribution Box | 1 | Auxiliary Power Supply System |
Other Energy Product Business Segments
1
Power and Custom Energy Storage Systems
2
Energy Storage + Inverter + Wind/Solar/Diesel/Charging
3
Value-Added Services
Customized high-performance energy storage systems for different voltage platforms/capacities on demand
- 12V Lead-acid to Lithium Battery Conversion
- Portable Energy Storage
- Base Station Energy Storage
- Small Power Batteries
12.8V Energy Storage Battery Applications
12.8V Lithium Battery 100AH/150AH/200AH/302AH
- Smaller Size
- Higher Efficiency
- Higher Energy Density
- Easy Installation
- Uses Yinlong Lithium Iron Phosphate Batteries
