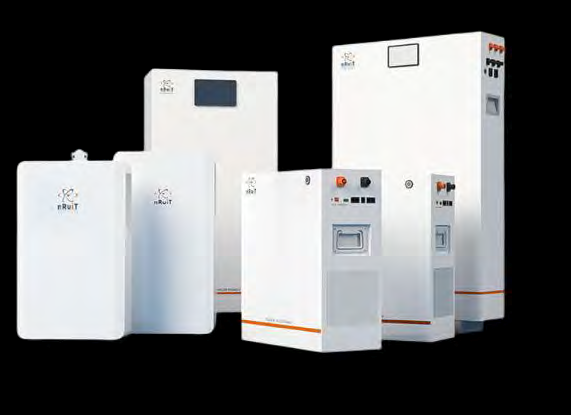

Home Energy Storage
The home energy storage series includes high and low voltage stacking machines, integrated machines, and split-type machines.
All products in the series use world-class battery cells, ensuring stable performance and over 6000 cycles. These products have passed safety certifications like UN38.3, CE, and IEC62619.
Solutions and Services for Clean Energy Storage
Certified by UN38.3, CE, IEC62619 for safety performance.
Safety
Using lithium iron phosphate battery cells
High Energy Density
Highly integrated battery with a lighter weight
Compact Size
Metal casing, small and compact
Easy to Install
Can be wall-mounted or floor-standing
High Efficiency
Faster charge and discharge, no memory effect
High Compatibility
Compatible with major inverter brands

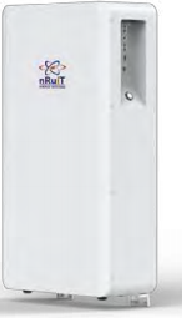

Powerporter
Product Parameters
51.2V
>6000 cycles
10 years
CAN2.0/RS485
| Model | Powerporter 5.0 | Powerporter 9.0 | Powerporter 10.0 | Powerporter 12.0 | Powerporter 15.0 |
|---|---|---|---|---|---|
| Battery Data | |||||
| Rated Energy | 5.1 kWh | 9.0 kWh | 10.2 kWh | 12.28 kWh | 15.46 kWh |
| Battery Capacity | 100Ah | 176Ah | 202Ah | 240Ah | 302Ah |
| Discharge Voltage | 45 ~ 54V | 45 ~ 54V | 45 ~ 54V | 45 ~ 54V | 45 ~ 54V |
| Charge Voltage | 51.5V ~ 54V | 51.5V ~ 54V | 51.5V ~ 54V | 51.5V ~ 54V | 51.5V ~ 54V |
| Operating Temperature | 0°C~45°C (charging), -20°C to 45°C (discharging) | ||||
| Continuous Charge Current | 50A | 100A | 100A | 100A | 200A |
| Peak Charge Current | 100A | 125A | 125A | 125A | 230A |
| Continuous Discharge Current | 65A | 100A | 100A | 100A | 200A |
| Peak Discharge Current | 100A | 125A | 125A | 125A | 230A |
| Rated Discharge Power | 3000W | 5000W | 5000W | 5000W | 10000W |
| Max Discharge Power | 5000W / parallel operation | 10000W / parallel operation | 10000W / parallel operation | 10000W / parallel operation | 30000W / parallel operation |
Certified by UN38.3, CE, IEC62619 for safety performance.
Adaptive
Automatically sets and matches voltage
Safety
Using lithium iron phosphate battery cells
Easy Installation
Integrated system, no complex wiring, saves space
High Compatibility
Compatible with major inverter brands

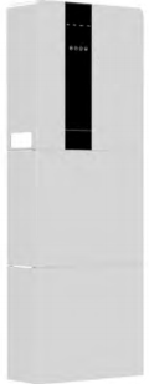

Low Voltage Integrated Home Energy Storage
Product Parameters
100%
>6000 cycles
10 years
51.2V
RS485/CAN
| Model | AIO T10 |
|---|---|
| Battery Data | |
| Nominal Capacity | 10.2kwh |
| Usable Capacity | 9.18kwh |
| Depth of Discharge (DoD) | 90% |
| Rated Voltage | 51.2V |
| DC Breaker | 125A |
| Operating Voltage Range | 44.8-56.5V |
| Internal Resistance | <20mΩ |
| Cycle Life | 6000 cycles |
| Max Charge/Discharge Current | 100A/100A |
| Rated DC Power | 5000W |
| Max Charge/Discharge Power | 5000W/5000W |
| Operating Temperature Range | 0 to 50°C charging, -15 to 50°C discharging |
| Humidity | 0~90% (non-condensing) |
Certified by UN38.3, CE, IEC62619 for safety performance.
Strong Scalability
From 5.12kWh to 30.6kWh
Protection Level
IP65, suitable for outdoor use
Adaptive
Automatically sets and matches voltage
Safety
Using lithium iron phosphate batteries
Stacked Design
Wireless connection, easy to install and space-saving
High Compatibility
Compatible with major inverter brands

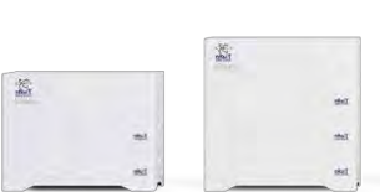

Low Voltage Stacking Home Energy Storage System
Product Parameters
100%
>6000 cycles
10 years
51.2V
RS485/CAN
| Model | LV M05 | LV M10 | LV M15 | LV M20 | LV M25 | LV M30 |
|---|---|---|---|---|---|---|
| Module Quantity | 1 | 2 | 3 | 4 | 5 | 6 |
| Rated Capacity | 100Ah | 200Ah | 300Ah | 400Ah | 500Ah | 600Ah |
| Battery Nominal Energy | 5.12kWh | 10.2kWh | 15.3kWh | 20.4kWh | 25.5kWh | 30.6kWh |
| Max Continuous Discharge Power | 5kW | 10Kw | 10Kw | 10kW | 10kW | 10kW |
| Max Continuous Charge Power | 5kW | 10Kw | 10Kw | 10kW | 10kW | 10kW |
| Dimensions (W*D*H) | 700*370*380 | 700*370*540 | 700*370*700 | 700*370*860 | 700*370*1020 | 700*370*1180 |
| Net Weight | 71.4kg | 119.8kg | 168.2kg | 216.6kg | 265kg | 313.4kg |
| Operating Temperature | 0°C~50°C (charging), -20°C to 55°C (discharging) | |||||
| Protection Level | IP65 | |||||
| Alerts | Overcharging / over-discharging / overcurrent / overheating / short circuit | |||||
| Advantages | Suitable for off-grid and hybrid setups, compact design, modular expansion | |||||
| Battery Module Type | Low voltage | |||||
| Compatible Inverters | Megarevo/Growatt/Deye/Lux Power/TBB/Victron/GoodWe | |||||
Certified by UN38.3, CE, IEC62619 for safety performance.
Strong Scalability
From 10.0kWh to 30.0kWh
Protection Level
IP65, suitable for outdoor use
Adaptive
Automatically sets and matches voltage
Safety
Using lithium iron phosphate batteries
Stacked Design
Wireless connection, easy to install and space-saving
High Compatibility
Compatible with major inverter brands
High Voltage Stacking Home Energy Storage System
Product Parameters
100%
>6000 cycles
10 years
52V
CAN
| Model | HVT10 | HVT15 | HVT20 | HVT25 | HVT30 |
|---|---|---|---|---|---|
| Module Quantity | 2 | 3 | 4 | 5 | 6 |
| Rated Voltage | 204.8V | 307.2V | 409.6V | 512.0V | 614.4V |
| Battery Nominal Energy | 10.2kWh | 15.3kWh | 20.4kWh | 25.5kWh | 30.6kWh |
| Max Continuous Discharge Power | 5kW | 8kW | 12kW | 16kW | 20kW |
| Max Continuous Charge Power | 5kW | 8kW | 12kW | 16kW | 20kW |
| Dimensions (W*D*H) | 700*370*540 | 700*370*700 | 700*370*860 | 700*370*1020 | 700*370*1180 |
| Net Weight | 121.7kg | 170.7kg | 219.7kg | 268.8kg | 317.7kg |
| Operating Temperature | 0°C~50°C (charging), -20°C to 50°C (discharging) | ||||
| Protection Level | IP65 | ||||
| Alerts | Overcharging / over-discharging / overcurrent / overheating / short circuit | ||||
| Advantages | Suitable for off-grid and hybrid setups, compact design, modular expansion | ||||
| Battery Module Type | High voltage | ||||
| Compatible Inverters | Megarevo/Growatt | ||||
Other Energy Product Business Segments
1
Power and Custom Energy Storage Systems
2
Energy Storage + Inverter + Wind/Solar/Diesel/Charging
3
Value-Added Services

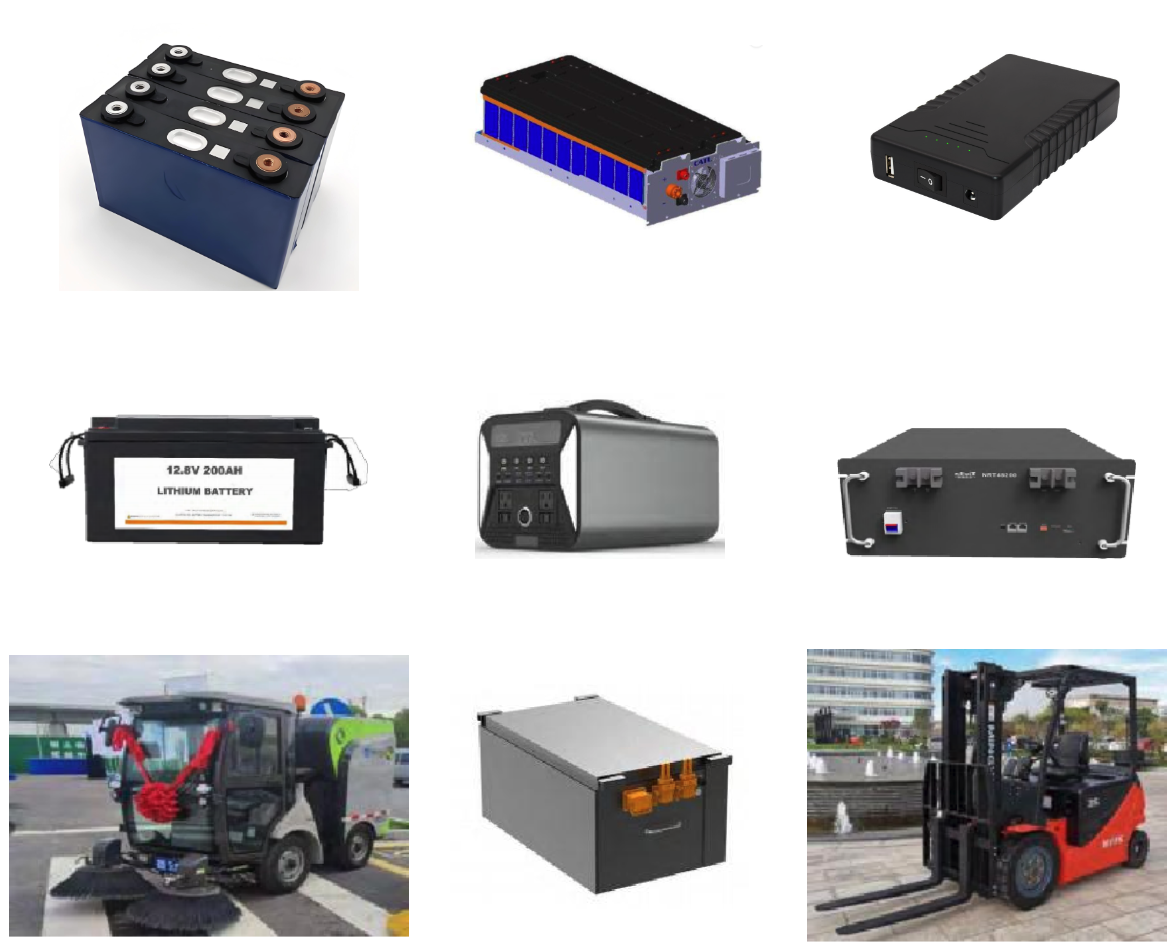

Customized high-performance energy storage systems for different voltage platforms/capacities on demand
- 12V Lead-acid to Lithium Battery Conversion
- Portable Energy Storage
- Base Station Energy Storage
- Small Power Batteries

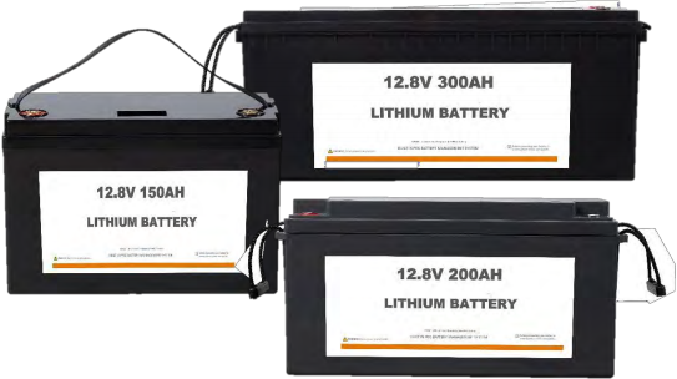

12.8V Energy Storage Battery Applications
12.8V Lithium Battery 100AH/150AH/200AH/302AH
- Smaller Size
- Higher Efficiency
- Higher Energy Density
- Easy Installation
- Uses Yinlong Lithium Iron Phosphate Batteries
